Functions and Features

Camera

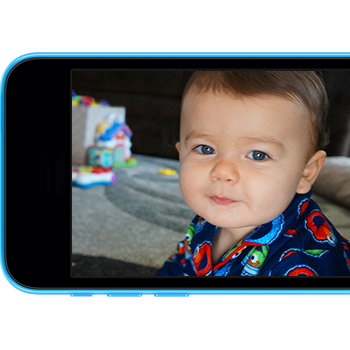

• HD resolution (1280 x 720)
• Night vision with infrared LEDs that turn on automatically when it gets dark

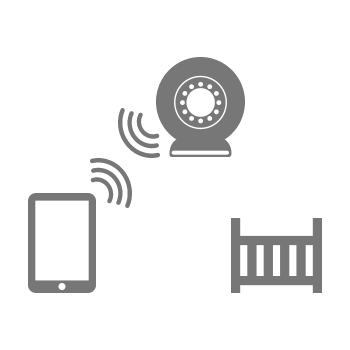

• 802.11n wireless lets you place the camera anywhere

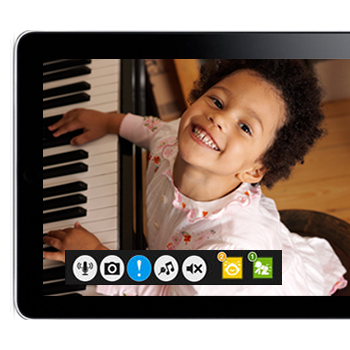

• MicroSD/SDHC card slot¹ for recording snapshots and video triggered by motion or sound
• Can be powered by an external USB battery²
• 5 gentle lullabies built-in
• Interchangeable blue and pink accent color rings

Intelligent Baby Monitoring

• Sound detection alerts you to loud noises, such as a baby crying

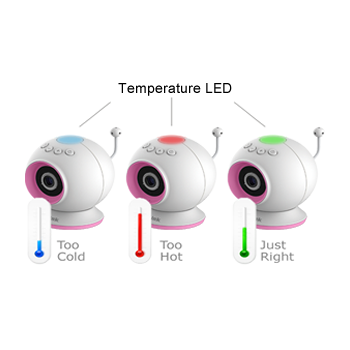

• Temperature sensor and indicator light informs you if the room becomes too hot or cold
• Built-in motion detection lets you know if the camera detects movement
• Notifications can be sent to your mobile device for detected events
• Two-way audio lets you hear your baby and allows you to respond and calm your child

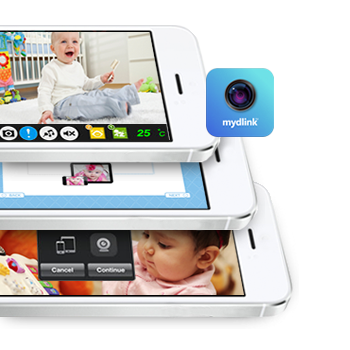

• Uses the free mydlink™ Baby app for iPhone, iPad, and Android devices
• The mydlink™ Baby app helps you set up your device and gives you easy access to all functions
• View and control through the secure mydlink™ web portal



Technical Specifications

Camera Hardware Profile

• 1/4」 megapixel progressive CMOS sensor
• 16 ft night vision with infrared LEDs
• Minimum illumination: 0 lux with IR LEDs on
• Built-in microphone and speaker

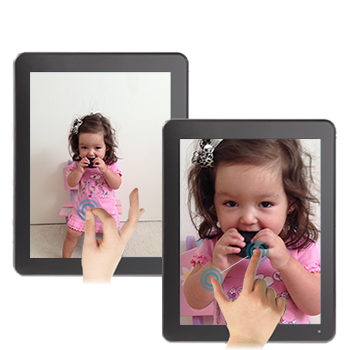

• 4x digital zoom
• Tripod screw mount
• Focal length: 3.3 mm
• Aperture: F2.2
• Angle of view:
  • (H) 66.18°
  • (V) 35.9°
  • (D) 76.22°

External Device Interfaces

• 802.11n wireless
• microSDHC card slot¹
• Reset button
• Lullaby, Volume Up/Down, and Power buttons
• Power port (Micro-USB)

Image Features

• Configurable image size
• Time stamp and temperature overlays

Video Compression

• H.264 format video compression
• JPEG for still images

Video Resolution

• 1280 x 720
• 640 x 360

Audio Support

• AAC

Baby Monitoring Features

• Sound detection with adjustable sensitivity
• Motion detection with adjustable sensitivity
• Records snapshots and video to microSD when triggered by motion or sound
• Temperature detection with configurable alert range
• Sends notifications when sound/motion/temperature change is detected
• 2-way audio lets you listen and respond to your child

Mobile App

• Free mydlink Baby Camera Monitor app available on the Apple App Store and Google Play
• Compatible with iPhone and iPad using iOS 5.1.1 or higher
• Compatible with Android smartphones and tablets using Android 4.01 or higher



Network

Network Protocols

• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• HTTP
• HTTPS (for configuration)
• UPnP port forwarding
• RTP/RTSP/RTCP

Security

• Administrator protection
• Password authentication
• HTTP and RTSP digest encryption



Physical

Dimensions (L x W x H)

• 5.4 x 3.6 x 4.2 inches with temperature sensor fully extended

Weight

• Device: 4.9 oz

Power Input

• 5 V DC / 1.5 A, 50/60 Hz through power adapter
• Can be powered by an external USB battery with at least 2 A output

Power Consumption

• 7.5 watts max.

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• CE
• CE LVD
• FCC
• C-Tick

1 Supports microSDHC Class 6 card and above up to 32 GB. MicroSD card not included.
2 USB battery not included, requires at least 2A output.
