The DCS-942L provides true around-the-clock surveillance so you can check in on your home or office from wherever you are. Simply log-in to your account with an Internet browser or mydlink mobile app available for iOS and Android devices, and start viewing. The DCS-942L comes fully-equipped with H.264 enhanced video compression that allows you to record up to 5x more footage to the built-in microSD card slot, when compared to MJPEG. It also comes with enhanced motion detection and night vision features that let you see up to 15 feet in pitch black darkness.
Anywhere Access with mydlink™

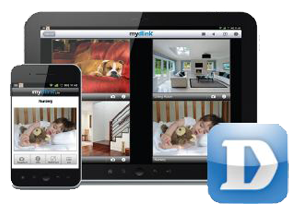

With the mydlink Lite app for iPhone and Android, you can quickly and easily see your camera feed from anywhere with a Wi-Fi, 3G or 4G connection. No more guessing what's going on at your house while you're away. Thanks to this app, you can monitor on-the-go... even if you don't have access to a computer.
Remotely monitor your network cameras from anywhere
Remote Pan & Tilt live video*
Select video quality
No Monthly service fees
2-way audio (supported on select models with mic and speaker)
Built with motion sensing technology, the DCS-942L is capable of triggering instant e-mail alerts and auto-recording based on changes within your camera's environment. The intuitive mydlink interface allows you to quickly customize your camera's settings, so you can have full control of how and when you want to be alerted. Easily setup watch-zones to be instantly notified when your camera detects strange activity.
Night Vision Technology
The DCS-942L provides around-the-clock surveillance with night vision capability, allowing you to see up to 15 feet in complete darkness. Whether you're using your camera for home surveillance or to keep an eye on your loved ones, the DCS-942L gives you the peace of mind you deserve.
Additional Resources
Stay informed with interesting and relevant articles, guides and blogs on D-Link's Learning Center.
A Beginner's Guide to Home Monitoring with Network Cameras
Network Camera Buying Guide
Specifications
Lens
Focal length: 3.15 mm, F2.8
Minimum Illumination
Color: 1 Lux @ F2.8
B/W: 0 Lux with IR LED on
Sensor
VGA 1/5 inch CMOS Sensor
Removable IR-Cut filter: auto/schedule/Manual
IR LED
5 meter illumination distance
PIR Sensor
Digital Zoom
Up to 4x
3A Control
AGC (Auto Gain Control)
AWB (Auto White Balance)
AES (Auto Electronic Shutter)
Built-in Network Interface
10/100Base-TX Fast Ethernet
802.11b/g/n WLAN
SDRAM
128 MB
Flash Memory
16 MB
Video Codecs
H.264
MPEG-4
MJPEG
JPEG for still image
Resolution
640 x 480 at up to 30 fps
320 x 240 at up to 30 fps
160 x 120 at up to 30 fps
Network Protocol
IPV4, ARP, TCP, UDP, ICMP
RTSP, RTP, RTCP
DHCP Client
NTP Client (D-Link)
DNS Client
DDNS Client (D-Link)
SMTP Client
FTP Client
HTTP Server
PPPoE
UPnP Port Forwarding
LLTD
3GPP (Video only)
Security
WPS
WEP
WPA
WPA2
Power
Input: 100-249 V AC, 50/60Hz
Output: 5 V DC, 1.2A
External AC-to-DC switching power adapter
5.5W Max Power Consumption
Operation Temperature
32°F to 140°F (0°C to 40°C)
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Humidity
20-80% RH Non-Condensing
Dimensions (W x D x H)
Including the bracket and stand: 2.6” x 2.6” x 5” (65.8mm x 65mm x 126mm)
Camera only: 1.1” x 2.4” x 3.8” (27.2mm x 60mm x 96mm)
Certifications
FCC Class B
IC
C-Tick
CE
Support
24/7 Basic Installation Support1
Warranty
1-Year Limited2
1 Latest Software and Documentation available at support.dlink.com. 2 1-Year Limited Warranty available only in the USA and Canada.
